# Ansible Playbooks for Apache Kafka in production

## 前言

参考了[confluentinc/cp-ansible](https://github.com/confluentinc/cp-ansible)playbook批量安装部署Apache Kafka 2.2.0. 已在[Github](https://github.com/Junyangz/ansible-kafka)上开源

> 注：集群的zookeeper集群已通过Cloudera Manager安装了，所以不包括Zookeeper的安装部分

## Apache Kafka & Systemd

### Requirements

* Ansible setup on your terminal
* rhel7/CentOS7
* Zookeeper cluster
* Ansible playbook([repo](https://github.com/Junyangz/ansible-kafka))
* offline dist([Apacher Kafka](https://kafka.apache.org/downloads))

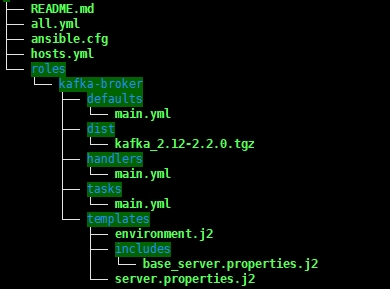

### Source tree

![Source tree](https://img.junyangz.com/picGo/20190524102658.png)

> 注：仓库里不含Kafka发行包`kafka_2.12-2.2.0.tgz`,需要自行下载并放置在上图的位置中

* `hosts.yml` 里列出所有的主机角色，包括`Zookeeper`和`Kafka broker`
* `all.yml` 里列出对位于`broker`分组中的主机执行`task`任务

### 理解和使用

运行

```bash
#ansible-playbook -C all.yml #运行之前可以先检查下,检查没问题后再运行
ansible-playbook -i hosts.yml all.yml
```

`roles/kafka-broker/defaults/main.yml`

```
配置安装过程中的所需变量即Zookeeper端口，Kafka broker配置，Systemd等相关内容
```

`roles/kafka-broker/handlers/main.yml`

```
配置完Systemd服务后执行daemon-reload并重启Kafka broker
```

`roles/kafka-broker/tasks/main.yml`

```
任务执行流，创建Kafka用户及用户组，创建Kafka数据目录，分发Kafka发行包，更改权限，拷贝broker配置文件并修改，创建systemd文件并启动Kafka
```

`roles/kafka-broker/templates/`

```
该文件夹下放置了broker的配置文件和Systemd文件，执行的时候将defaults设定的变量写入到文件中
默认配置文件参考了confluent Kafka的配置，请自行修改成自己所需的配置。
```

部署后可以使用 `journalctl -xefu kafka`检查Kafka的运行日志,部署目录/opt/apps/kafka/logs下也有相应的日志文件，此外还可以在Syslog中自行配置Identifier=kafka的日志处理。例如传输到各种监控程序中。

## Reference

* [Ansible Playbooks for Confluent Platform](https://docs.confluent.io/current/tutorials/cp-ansible/docs/index.html)
* [Running Kafka in Production](https://docs.confluent.io/current/kafka/deployment.html#cp-production-parameters)
* [cp-ansible](https://github.com/confluentinc/cp-ansible)
* [Ansible playbooks for Kafka and Zookeeper](https://blog.insightdatascience.com/ansible-playbooks-for-kafka-and-zookeeper-with-ec2-dynamic-inventory-8f317d4d2bfc)
* [HowTo: Organize Ansible Playbook to install, uninstall, start and stop Kafka and Kafka Connect](https://medium.com/@mykidong/howto-organize-ansible-playbook-to-install-uninstall-start-and-stop-kafka-and-kafka-connect-e7250c5def9d)


---
